LRD3120

USER’S GUIDE  for the

LRD3120 With Remote Sensing Head – Capacitive Label Sensor

DOWNLOAD PDF FILE


Description

The LION PRECISION LRD3120 is an electronic, capacitive sensor used to monitor label registration and/or count labels. The outputs indicate the edges of labels as the pass through the sensor.


Connecting to the Sensor
Warnings
  • Sensor body is connected to Ground.
  • Sensors must not be attached to voltages in excess of 30VRMS or 60VDC.
  • All external connections must be SELV (Safety Extra Low Voltage).
  • All power must be off when installing the sensor.
  • Brown wire must be connected to +V or Ground for reliable operation
  • Use of the equipment in any other manner may impair the safety and EMI protections of the equipment.

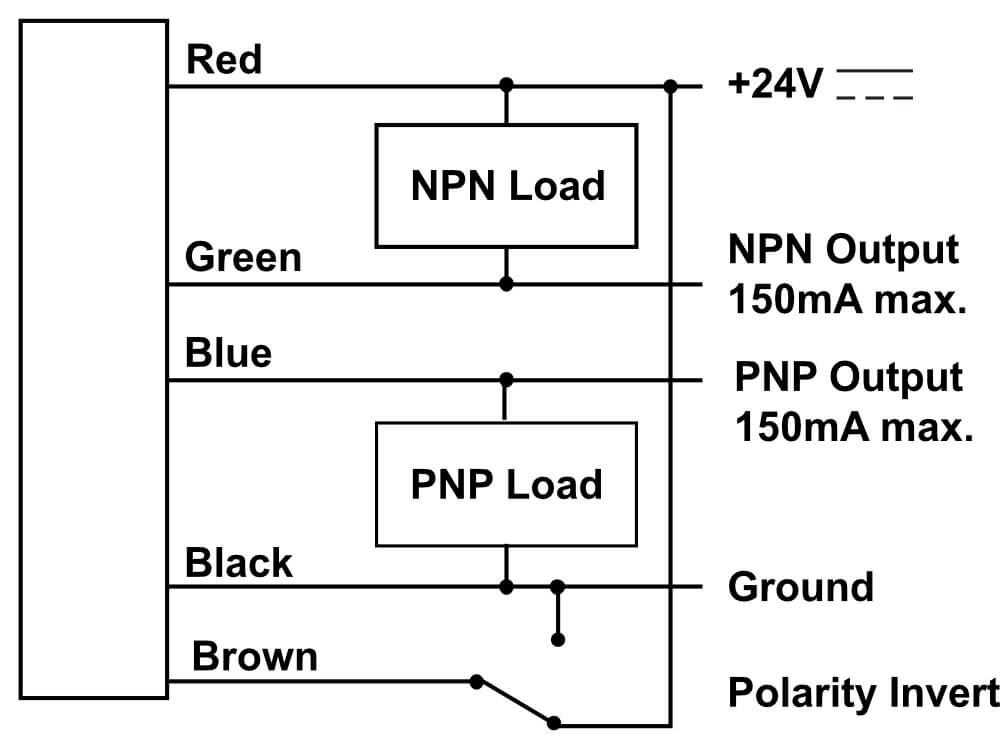

LRD3100 Wiring
Wire Color Connection Notes
Red Vin (24V) 50mA max.
Black Ground Connected to sensor body
Green NPN Output 150mA max.
Blue PNP Output 150mA max.
Brown Output Polarity (light/dark switching) +V or Ground See detail on back
Warning: Brown wire must be connected to +V or Ground for reliable operation.

LRD3100 Wiring


Specifications
Power Supply Voltage 24 V (reverse polarity protected)
Current 50mA
Response Time on or off 20μs max
Switching Frequency 10kHz max
Output Output Current (sinking or sourcing) 150mA max (overload protected)
Switching Output PNP (sourcing) or NPN (sinking), Dark or light switching
Temperature Operating Range 40°F to 140°F (4°C to 60°C)
Protections Supply Inverse Polarity Protection
Switching Output Short Circuit and Overload Protection

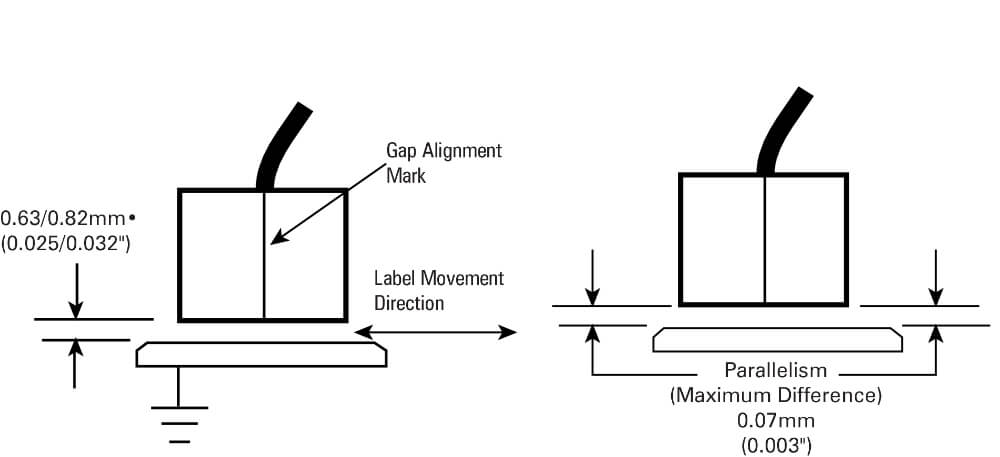

Remote Head Mounting

The remote head must be mounted above a stable, grounded, conductive reference surface. The labels must remain in contact with the reference surface. The remote head must be mounted such that the spacing and parallelism with the reference surface is stable throughout all operating conditions (vibration and temperature). The gap between the remote head and the reference surface must meet the specifications below at all times.

Remote Head Mounting


Setup Procedure
  1. Remove all material from sensor.
  2. Center GAIN ADJUST
    1. Turn GAIN ADJUST to 50
  3. Set ZERO ADJUST
    1. Set ZERO ADJUST to the point where the ZERO light just begins to come on.
    2. It is not important whether the light is on or off. What is important is that the light is very near the point where it changes from off to on.
  4. Set GAIN ADJUST
    1. For most labels, GAIN will need no further adjustment. If the sensors performs erratically, use this GAIN adjustment procedure.
    2. Insert material into sensor.
    3. While moving labels through the sensor, Set GAIN ADJUST to the point where the OUTPUT light (EDGE on some models) starts to flash. Then continue turning 1/2 turn clockwise.
  5. Sensor is now ready.

Lights During Operation

The OUT light indicates the sensor output. It will be in one state (on or off) during the label and the other state during the gap depending on the direction of the label movement and the connection of the Polarity Invert Wire (see next page for details).

The ZERO light is for setup only and is meaningless during operation.


Notes
  1. Some inks, usually black, have high carbon content. These inks behave like metal and may not work reliably with the LRD3120.
  2. The LRD3120 remote head has very stringent mounting requirements for reliable operation. See instructions above.

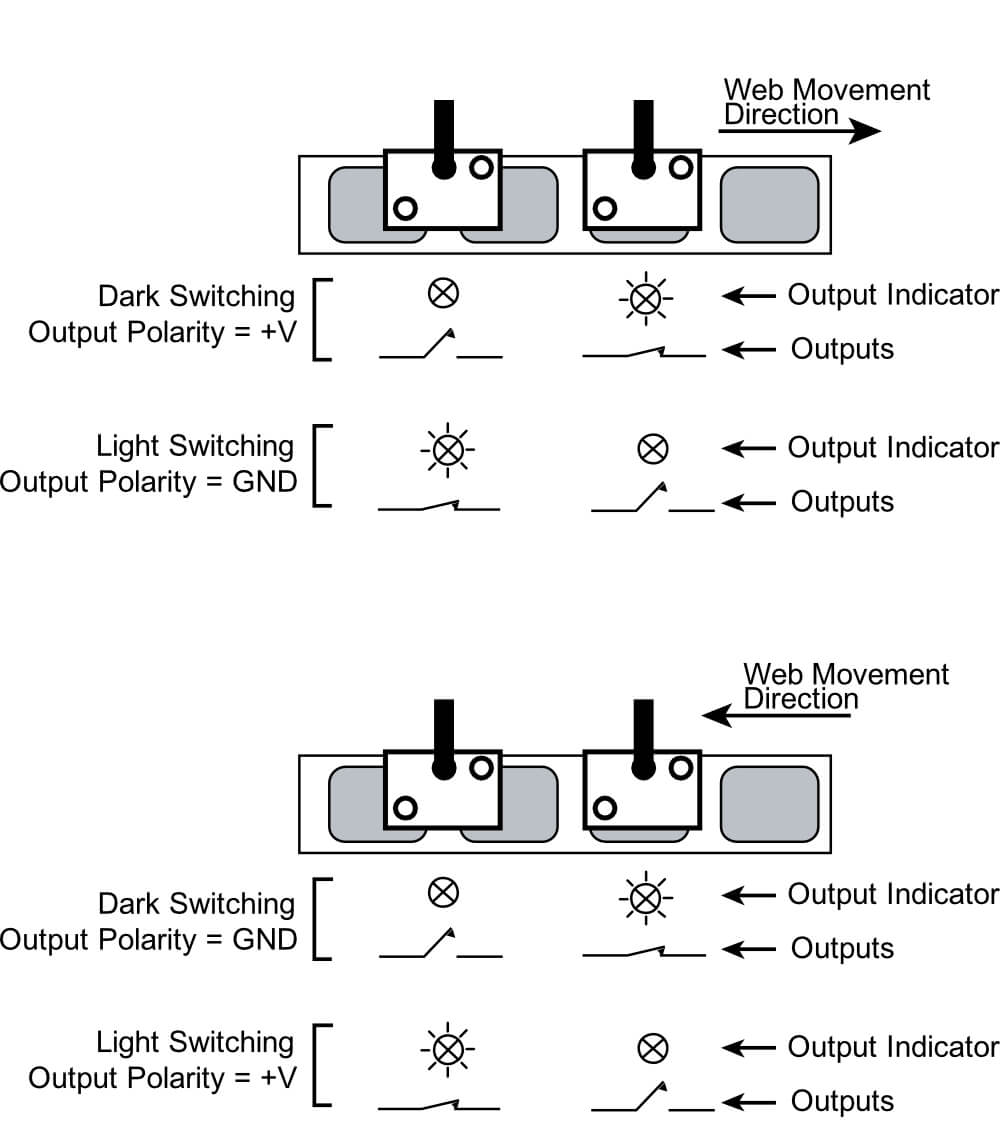

Output

Light/Dark switching is affected by the direction of label movement and the Light/Dark Switching connection. Output descriptions below are for web directions as indicated in the illustrations.

Output

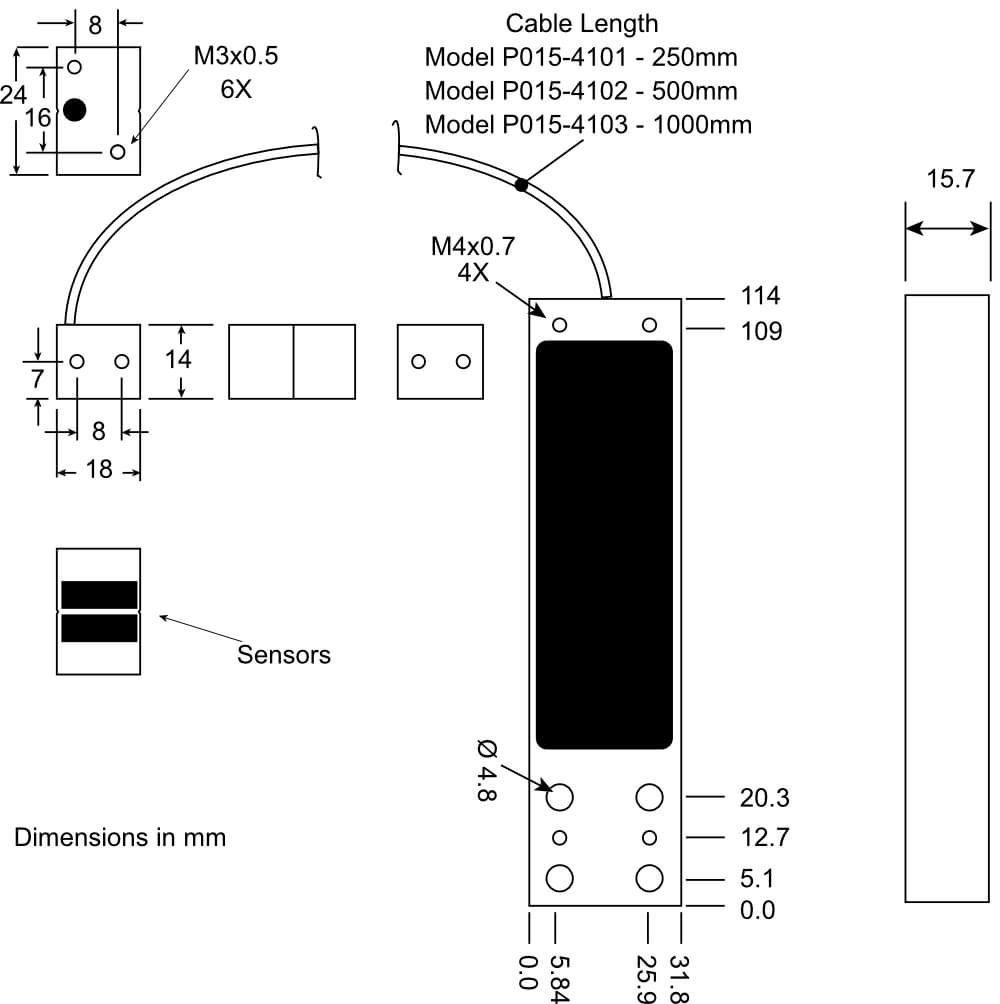

Mechanical Detail

Mechanical Detail
