Lion Precision has launched its first wireless eddy-current displacement measuring system with a resolution down to 100 nm. A perfect wireless precision measuring technology for the demand of harsh and dirty environments.

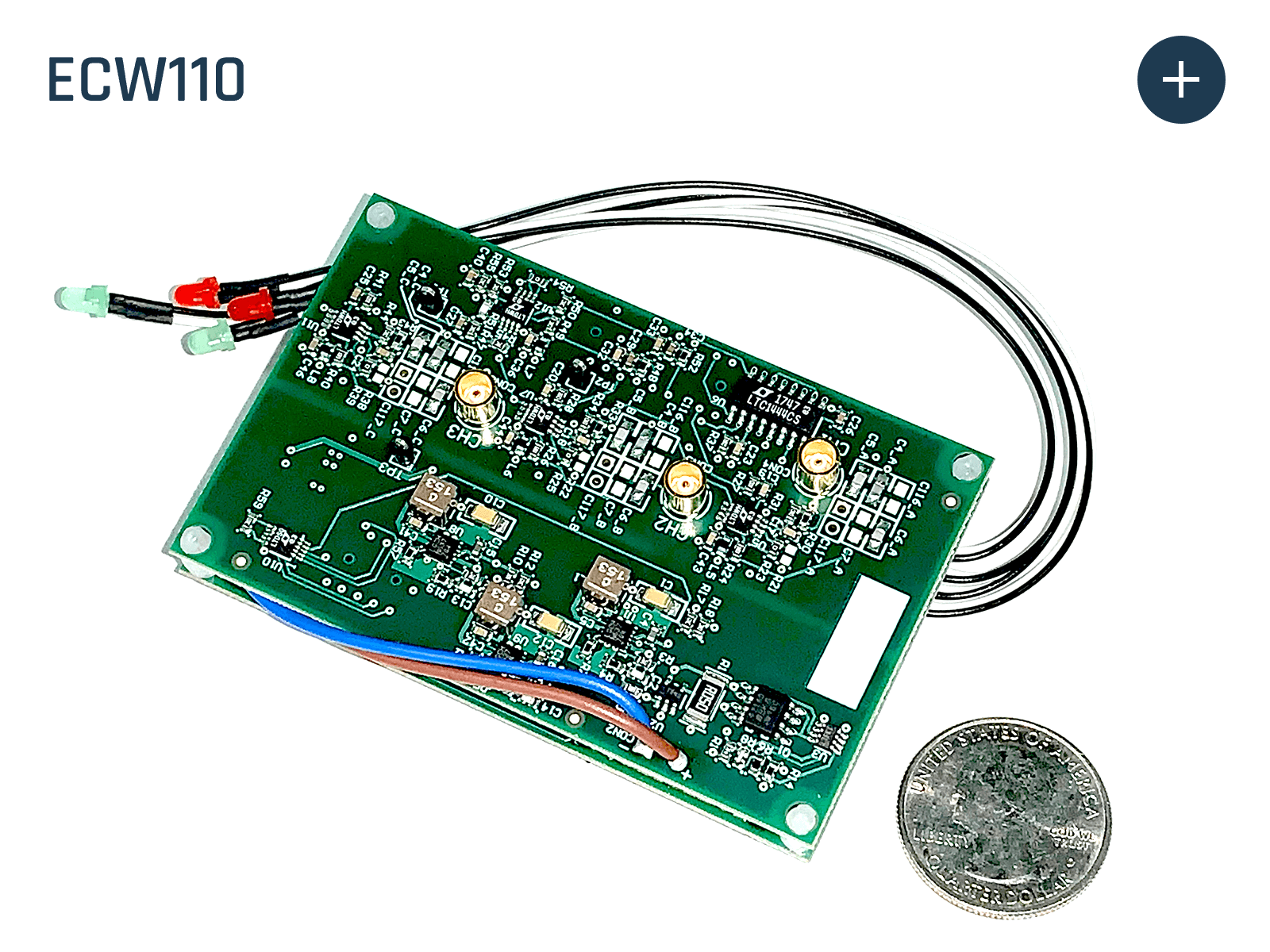

The new battery powered ECW110 eddy-current displacement sensor provides a high-resolution, non-contact measurement of position changes of a conductive target. The system consists of a driver and 1 to 3 eddy-current probes calibrated for a specific material and range.

The system provides wireless communication to a laptop or PC using a dedicated Wi-Fi network that is provided with the system.

Key Benefits

• Dedicated and secure wireless network
• IEEE 802.11 b/g/n standard
• Up to 3 channels per system (synchronized)
• Probes can be ordered as vacuum compatible

Specifications

Typical specifications for standard targets and probes. Actual values depend on probe, target, and calibration. Specifications assume a target area at least three times the diameter of the probe.

• Resolution: @ 1kHz: Typically 100 nm RMS
• Bandwidth (Factory Set): 1 kHz
• Ranges: 2 mm to 3.5 mm
• Linearity: 0.50% of Range
• Output: 0-10 VDC
• Input Power: 12-24 VDC | 130 mA at 15 VDC
• Operating Temperature: 4°C-50°C
• Probe Operating Environment:
  • Standard Probes come with PUR (Polyurethane) jacketed cables. High Temperature Probes have FEP jackets. Other temperature ranges may be possible. Contact us for more information. Standard Probes: IP67 | High Temperature Probes: IP63
    • U3 Probe: Standard Probe (PUR Cable): -25°C to +125°C (Available with optional FEP cable) | High Temperature Version Not Available
    • U5-18 Probes: Standard Probes: -25°C to +125°C | High Temperature Probes: -25°C to +200°C
    • U25-50 Probes: Standard Probes: -25°C to +125°C | High Temperature Probes: -25°C to +175°C
