THREAD DETECTION

THREAD DETECTION PROBES



Download PDF File

Automate manufacturing with thread detection sensors that identify threaded vs. unthreaded holes.

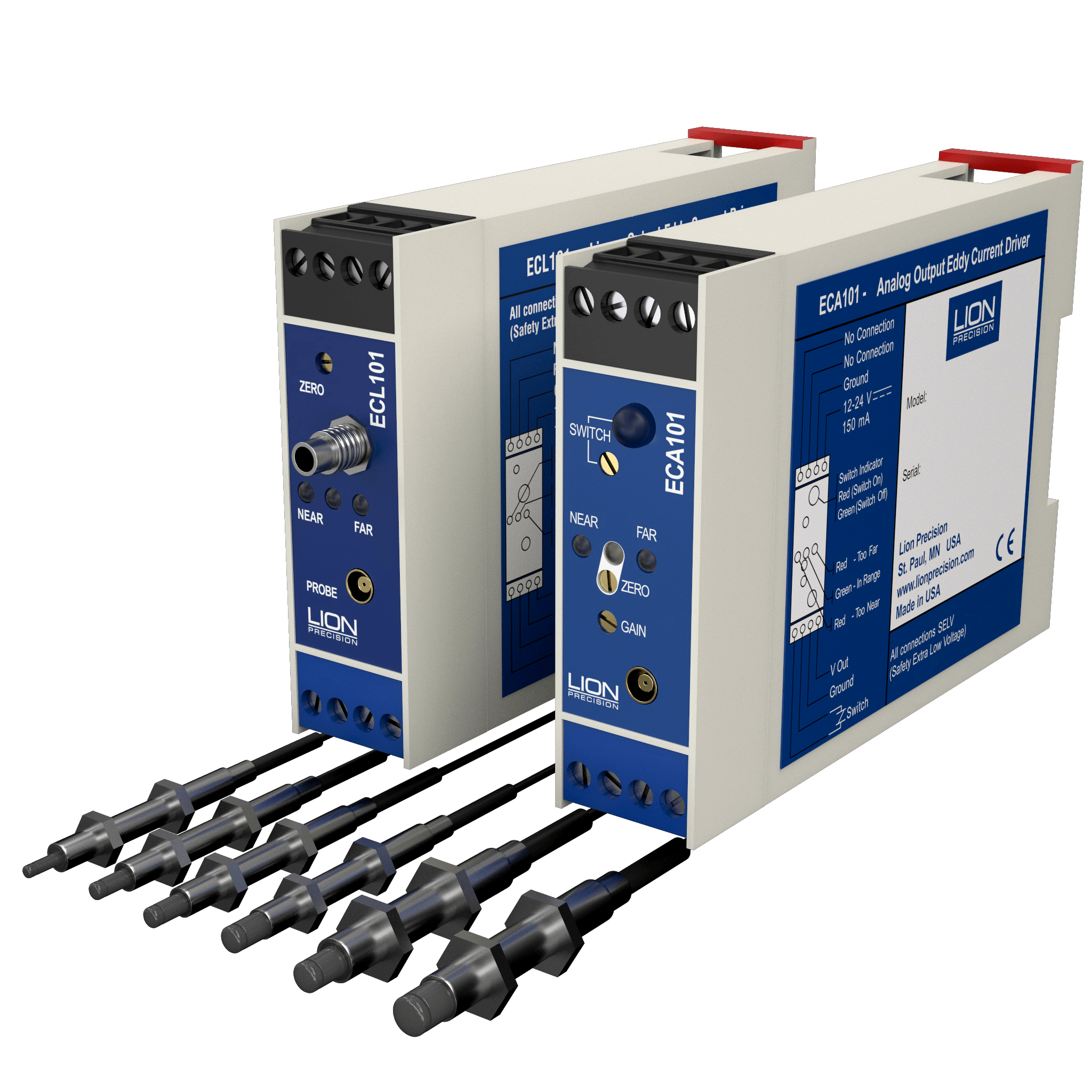

ECL101 and ECA101

Thread Detection probes are specialized versions of our standard eddy-current displacement probes. They have extended sensing tips to allow easier penetration of tapped/untapped holes and to allow the sensing field to more easily engage the sides of the holes.

Selecting the right probe is dependent on the material type (ferrous vs. nonferrous) and the tapped hole size. The charts below identify the probe model required for your specific sensing needs.



Features:

  • Easy Installation and Setup
  • Reliable, Repeatable Performance
  • Ferrous and Nonferrous Materials
  • Cut and Roll-Formed Threads
  • Optional Probe Crash Protection
  • IP67 Rating (Probes)
  • -25°C to +125°C Operating Temperature

T-Series for Threads:

T-Series probes sense tapped threads in ferrous materials (cast iron, steel, etc.) and tapped or roll-formed threads in nonferrous materials (aluminum, zinc, copper, etc.)

Ferrous Materials

  • Use T-Series probes with the ECA100
  • Driver: Adjustable anaolog voltage output and adjustable switched output.

Nonferrous Materials

  • Use T-Series probes with the ECL100
  • Driver: User adjustable analog voltage output

Nonferrous Materials

Probes Dimensions Body Thread


Thread Detection Probe Mechanical Detail

Thread Detection Probe Mechanical Detail


THREAD DETECTION DRIVERS

ECA100 & ECL100 Driver Specifications

THREAD DETECTION DRIVERSECL101 and ECA101 Diagrams

Probe Operating Environment

-25°C to +125°C IP67

Probe Cables

Standard probes have PUR (polyurethane) jackets. High-Temperature probes have FEP jackets. FEP cables can be custom ordered for standard temperature range probes.

Mounting Accessories

To minimize the chance of probe damage due to broken taps or misalignment, use mounting cushions for mounting probes. Size is selected to match the probe.

Model numbers table

Ordering Information

Please contact Lion Precision for ordering information. We can be reached via email at info@lionprecision.com, or via telephone at (651)-484-6544.
