Eddy-Current Sensor Probes

Reliable probes for use in hostile or clean environments. Also available as vacuum compatible.

Probe Body Styles

"B" Body Style:

“B” Body Style: Threaded body mounts with two nuts or threaded hole and one nut. Available in all sizes.
"C" Body Style:
“C” Body Style: Smooth steel body is clamp or set-screw mounted. Available in 3 mm – 12 mm (U3-U12)

Eddy-Current Probe Model Numbers

Eddy-Current Probe Model Numbers









Probe diameter determines the measurement range.
Larger Diameter = Larger Range

Probes can be ordered as vacuum compatible.

Standard Measurement Ranges

Standard Measurement Ranges

TheRangeandNear Gapare directly proportional to the diameter of the probe.



Custom ranges are available.






Probe
  • U3
    • Range: 0.5 mm | 0.020 inch
    • Near Gap: 0.05 mm | 0.002 inch
  • U5
    • Range: 1.25 mm | 0.050 inch
    • Near Gap: 0.25 mm | 0.010 inch
  • U8
    • Range: 2.00 mm | 0.080 inch
    • Near Gap: 0.35 mm | 0.015 inch
  • U12
    • Range: 3.50 mm | 0.140 inch
    • Near Gap: 0.60 mm | 0.025 inch
  • U18
    • Range: 5.00 mm | 0.200 inch
    • Near Gap: 0.75 mm | 0.030 inch
  • U25
    • Range: 8.00 mm | 0.320 inch
    • Near Gap: 1.25 mm | 0.050 inch
  • U38
    • Range: 12.5 mm | 0.500 inch
    • Near Gap: 1.50 mm | 0.060 inch
  • U50
    • Range: 15.00 mm | 0.600 inch
    • Near Gap: 2.00 mm | 0.080 inch




Mounting Clearances

To prevent mounting hardware or other metallic objects from interfering in precision measurements, eddy-current sensor probes must be mounted with the following clearances based on probe diameter (X).

Mounting Clearances Standard Mounting

Standard Mounting

Mounting Clearances Counterbore Mounting

Counterbore Mounting

Probe Operating Environment

Standard Probes come with PUR (Polyurethane) jacketed cables. High Temperature Probes have FEP jackets.

Other temperature ranges may be possible.Contact us for more information.

Standard Probes: IP67

High Temperature Probes: IP63

  • U3 Probe
    • Standard Probe: -25°C to +125°C | High Temperature Version Not Available

  • U5-18 Probes
    • Standard Probes: -25°C to +125°C | High Temperature Probes: -25°C to +200°C

  • U25-50 Probes
    • Standard Probes: -25°C to +125°C | High Temperature Probes: -25°C to +175°C


Probe Cables

Standard probes have PUR (polyurethane) jackets. High-Temperature probes have FEP jackets. FEP cables can be custom ordered for standard temperature range probes.

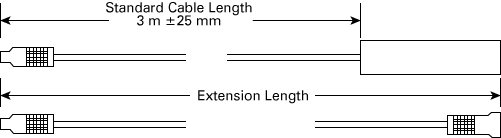

Probe Cables









More details on probe cabling are available in our Eddy-Current Probe Cabling Considerations TechNote.

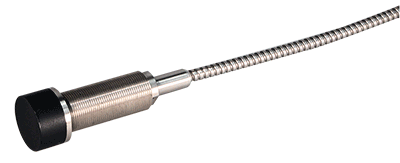

Armored Cable

Armored cable is available on 12 mm (U12) and larger probes.

Armored Cable












Mechanical Details

B-Threaded Body: U3B-U18B | U25B-U50B
C-Smooth Body: U3C-U12C
Custom Probes


B – Threaded Body
U3B – U18B

Life-Cycle Status: Active

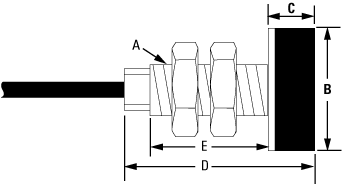

B - Threaded BodyB - Threaded Body









U3B

  • A: M3x.5
  • B: 2.0 mm | 0.08 inch
  • C: 3.0 mm | 0.12 inch
  • D: 21.1 mm | 0.83 inch
  • E: 13.0 mm | 0.51 inch
  • Range: 0.50 mm | 0.020 inch
  • Near Gap: 0.05 mm | 0.002 inch
  • Download STEP File

U5B

  • A: M5x.8
  • B: 3.4 mm | 0.13 inch
  • C: 3.0 mm | 0.12 inch
  • D: 23.0 mm | 0.91 inch
  • E: 18.0 mm | 0.71 inch
  • Range: 1.25 mm | 0.050 inch
  • Near Gap: 0.25 mm | 0.010 inch
  • Download STEP File

U8B

  • A: M8x1
  • B: 6.2 mm | 0.24 inch
  • C: 5.0 mm | 0.20 inch
  • D: 25.0 mm | 0.99 inch
  • E: 18.0 mm | 0.71 inch
  • Range: 2.00 mm | 0.080 inch
  • Near Gap: 0.35 mm | 0.015 inch
  • Download STEP File

U12B

  • A: M12x1
  • B: 10.0 mm | 0.39 inch
  • C: 7.0 mm | 0.28 inch
  • D: 29.0 mm | 1.15 inch
  • E: 18.0 mm | 0.71 inch
  • Range: 3.50 mm | 0.140 inch
  • Near Gap: 0.60 mm | 0.025 inch
  • Download STEP File

U18B

  • A: M18x1
  • B: 15.8 mm | 0.62 inch
  • C: 9.0 mm | 0.36 inch
  • D: 44.0 mm | 1.74 inch
  • E: 31.0 mm | 1.22 inch
  • Range: 5.00 mm | 0.200 inch
  • Near Gap: 0.75 mm | 0.030 inch
  • Download STEP File
U25B – U50B

Life-Cycle Status: Active

U25B - U50B











U25B

  • A: M18x1
  • B: 25.0 mm | 0.99 inch
  • C: 15.0 mm | 0.59 inch
  • D: 61.0 mm | 2.40 inch
  • E: 42.0 mm | 1.65 inch
  • Range: 8.00 mm | 0.320 inch
  • Near Gap: 1.25 mm | 0.050 inch
  • Download STEP File

U38B

  • A: M18x1
  • B: 38.0 mm | 1.50 inch
  • C: 20.0 mm | 0.79 inch
  • D: 80.0 mm | 3.15 inch
  • E: 54.0 mm | 2.13 inch
  • Range: 12.5 mm | 0.500 inch
  • Near Gap: 1.50 mm | 0.060 inch
  • Download STEP File

U50B

  • A: M18x1
  • B: 50.0 mm | 1.97 inch
  • C: 25.0 mm | 0.99 inch
  • D: 98.0 mm | 3.86 inch
  • E: 69.0 mm | 2.72 inch
  • Range: 15.0 mm | 0.600 inch
  • Near Gap: 2.00 mm | 0.080 inch
  • Download STEP File

C – Smooth Body
U3C – U12C

Life-Cycle Status: Active

U3C - U12C

U3C - U12C







U3C - U12C











U3C

  • A: 2.92 mm | 0.115 inch
  • B: 2.0 mm | 0.08 inch
  • C: 3.0 mm | 0.12 inch
  • D: 13.0 mm | 0.51 inch
  • E: 5.0 mm | .20 inch
  • F; 3.6 mm | 0.14 inch
  • Range: 0.50 mm | 0.020 inch
  • Near Gap: 0.05 mm | 0.002 inch
  • Download STEP File

U5C

  • A: 4.90 mm | 0.193 inch
  • B: 3.4 mm | 0.13 inch
  • C: 3.0 mm | 0.12 inch
  • D: 18.0 mm | 0.71 inch
  • E: –
  • F; –
  • Range: 1.25 mm | 0.050 inch
  • Near Gap: 0.25 mm | 0.010 inch
  • Download STEP File

U8C

  • A: 7.90 mm | 0.311 inch
  • B: 6.2 mm | 0.24 inch
  • C: 5.0 mm | 0.20 inch
  • D: 18.0 mm | 0.71 inch
  • E: –
  • F; –
  • Range: 2.00 mm | 0.080 inch
  • Near Gap: 0.35 mm | 0.015 inch
  • Download STEP File

U12C

  • A: 11.89 mm | 0.468 inch
  • B: 10.0 mm | 0.39 inch
  • C: 7.0 mm | 0.28 inch
  • D: 18.0 mm | 0.71 inch
  • E: –
  • F; –
  • Range: 3.50 mm | 0.140 inch
  • Near Gap: 0.60 mm | 0.025 inch
  • Download STEP File

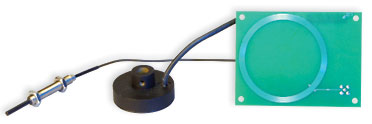

Custom Probes

We are committed to working with our customers to ensure their success by providing optimized sensing solutions. Optimized solutions often require custom probe shapes and styles. We will work with you to develop an effective solution for you application.

We are built for customization.

Custom Probes
